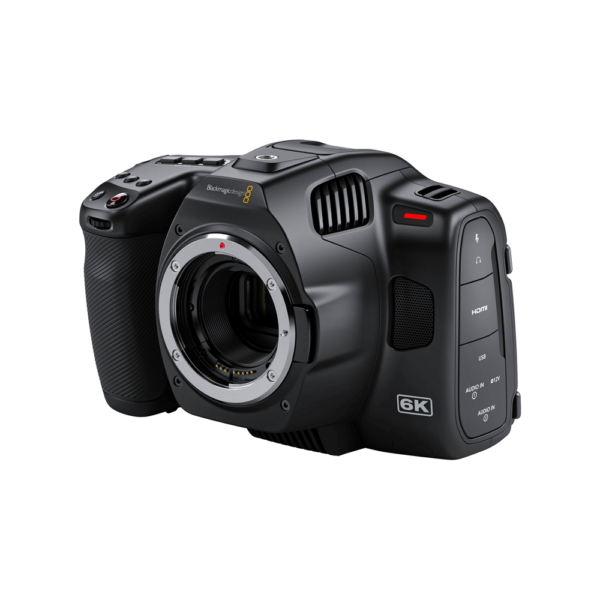

The Pocket Cinema Camera 6K G2 is the latest compact Super35 camera to join the Blackmagic Design series. This cine-style camera features the same 6K S35 sensor, recording features, dynamic range, interface ports, and controls as the 6K Pro but pares a few features to create a more affordable form. Features inherited from the 6K Pro include a 5″ tilting touchscreen LCD, Pro EVF and battery grip options, dual mini-XLR audio inputs, an NP-F570 L-series battery slot, and the updated Gen 5 color science. By eliminating the internal ND filters and reducing the 1500cd/m² LCD brightness of the 6K Pro, Blackmagic now enables users to choose between two near identical 6K models as best suits their priorities.
Blackmagic Design Pocket Cinema Camera 6K G2 Specs
Imaging
| Lens Mount | Canon EF |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Effective: 21.2 Megapixel (6144 x 3456) |
| Sensor Type | 23.1 x 12.99 mm (Super35) CMOS |
| Image Stabilization | None |
| Built-In ND Filter | None |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
Exposure Control
| Shutter Type | Electronic Rolling Shutter |
| ISO Sensitivity | 100 to 25,600 |
| Shutter Angle | 5 to 360° |
| Advertised Dynamic Range | 13 Stops |
| Raw Recording | Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 MB/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94/60 fps [37 to 359 MB/s] 5744 x 3024 up to 23.98/24.00/25/29.97/50/59.94/60 fps [40 to 395 MB/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 MB/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 MB/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 MB/s] |
| Recording Modes | ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT DCI 4K (4096 x 2160) up to 59.94p UHD 4K (3840 x 2160) up to 59.94p Full HD (1920 x 1080) up to 119.88p |
| Sensor Crop While Recording | 6K (6144 x 2560) in 2.4:1 When Recording in Raw 5744 x 3024 When Recording in Raw 4K (4096 x 2160) When Recording in Raw 3728 x 3104 When Recording in Raw 2868 x 1512 When Recording in Raw |
| Variable Frame Rates | 6K: Up to 60 fps 1080p: Up to 119.88 fps |
| Recording Limit | Unlimited |
| Built-In Microphone Type | Stereo |
| Raw Output | USB: 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94/60 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94/60 fps |
| External Recording Modes | 4:2:2 10-Bit via HDMI |
| IP Streaming | None |
Interface
| Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: CFast |
| Video I/O | 1 x HDMI Output |
| Audio I/O | 2 x Mini XLR Mic/Line (+48 V Phantom Power) Input 1 x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1 x Weipu SF610/S2 (12 to 20 VDC) Input |
| Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 1) Control/Video Output 1 x 1/8″ / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
| Wireless | Bluetooth Control |
| Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
| Size | 5″ |
| Resolution | 1920 x 1080 |
| Display Type | Tilting Touchscreen LCD |
| Type | Optional, Not Included |
Focus
| Focus Type | Auto and Manual Focus |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
General
| Battery Type | Sony L-Series |
| Tripod Mounting Thread | 2 x 1/4″-20 Female |
| Accessory Mount | 1 x 1/4″-20 Female |
| Material of Construction | Carbon Fiber, Polycarbonate |
| Dimensions (W x H x D) | 7.08 x 4.84 x 4.41″ / 17.98 x 12.29 x 11.2 cm |
| Weight | 2.65 lb / 1.20 kg |
Packaging Info
| Package Weight | 4.345 lb |
| Box Dimensions (LxWxH) | 10.1 x 6.9 x 6.9″ |
